Quick Start

Up in four steps.

Ubuntu 20.04, ROS Noetic, Python ≥ 3.9.

Clone & build

git clone https://github.com/thejerrycheng/IRIS.git
cd IRIS/meng_ws
rosdep install --from-paths src --ignore-src -r -y
catkin_make && source devel/setup.bash

Configure RS-485

ls /dev/ttyUSB*
sudo usermod -aG dialout $USER
sudo chmod 666 /dev/ttyUSB0

Launch hardware driver

roslaunch unitree_arm_ros iris_bringup.launch
# verify
rostopic echo /joint_states

Calibrate (first time)

rosrun unitree_arm_ros calibrate_home_state.py
rosrun unitree_arm_ros calibrate_joint_states.py

ROS Stack

Node architecture.

All components live in unitree_arm_ros. The hardware driver is the core — everything else communicates over standard ROS topics.

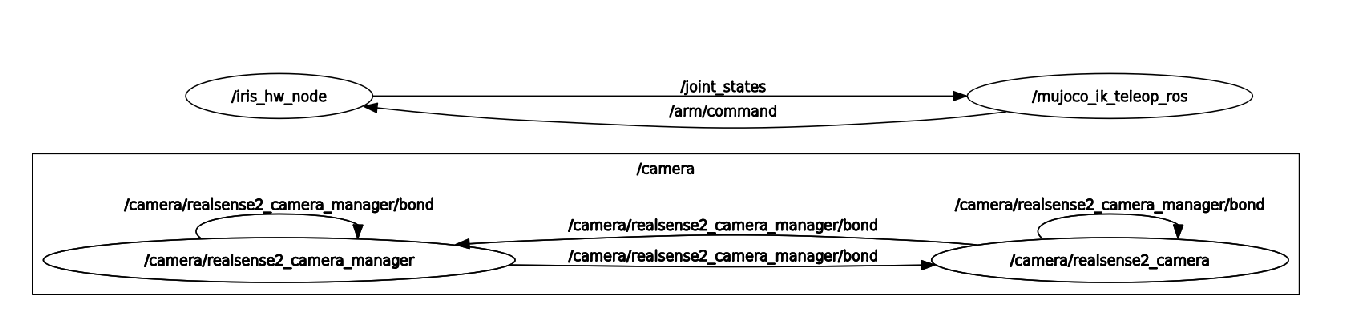

IRIS ROS node communication graph

iris_hw_node.py

Hardware driver. 200 Hz RS-485 loop, publishes /joint_states, subscribes /arm/command.

200 Hz RS-485

calibrate_joint_states.py

Applies encoder offsets from calibration.yaml and handles differential wrist coupling for joints 5 & 6.

Calibration

keyboard_ik_teleop.py

IK-based keyboard control. Move end-effector in Cartesian space with WASD + arrow keys.

IK Cartesian

keyboard_teleop.py

Joint-space keyboard teleoperation. Direct joint angle control for calibration and collision testing.

FK Joint Space

mujoco_visualizer.py

Streams real joint states into MuJoCo in real time. Enables live sim–real visual comparison during operation.

Sim Mirror

teach_and_repeat.py

Kinesthetic teaching. Guide the arm by hand to record a trajectory, then replay at any speed.

Kinesthetic

Key Topics

Topic	Type	Description
/joint_states	sensor_msgs/JointState	Raw encoder positions, velocities, torques @ 200 Hz
/joint_states_calibrated	sensor_msgs/JointState	Calibrated joint states with offsets applied
/arm/command	sensor_msgs/JointState	Target joint positions, velocities, feed-forward torques
/camera/color/image_raw	sensor_msgs/Image	RGB frames from RealSense D435
/camera/depth/image_rect_raw	sensor_msgs/Image	Depth frames from RealSense D435

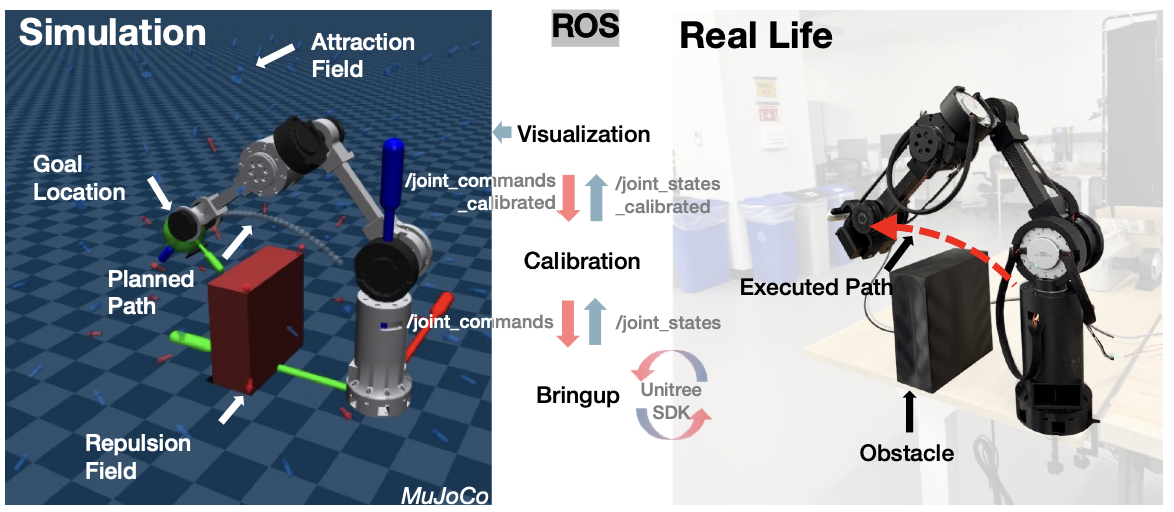

Sim–Real Sync

Real → MuJoCo mirror.

Any motion on the physical arm is reflected instantly in the MuJoCo viewer. Use it to validate calibration before running autonomy.

# 1. Start hardware driver
roslaunch unitree_arm_ros iris_bringup.launch

# 2. Open MuJoCo mirror
rosrun unitree_arm_ros mujoco_visualizer_calibrated.py

Requires calibrated states on /joint_states_calibrated.

Calibration

Kinematic calibration pipeline.

Maps encoder counts to joint angles and corrects differential wrist coupling. Results stored in calibration.yaml.

Step 1 — Home position

rosrun unitree_arm_ros calibrate_home_state.py
# Move to zero pose → press Enter to record

Records absolute encoder values at mechanical home. Run once after assembly.

Step 2 — Joint calibration

rosrun unitree_arm_ros calibrate_joint_states.py
# Applies offsets, corrects differential wrist

The differential wrist (joints 5 & 6) requires coupling correction — handled automatically.

# config/calibration.yaml
joint_offsets: [0.0, -1.5708, 1.5708, 0.0, 0.0, 0.0]  # radians
differential_wrist:
  joint5_gain: 0.5
  joint6_gain: 0.5
home_encoder_counts: [2048, 2048, 2048, 2048, 2048, 2048]

Data Collection

Recording demonstrations.

Synchronized joint states, RGB, and depth captured as ROS bags. Episodes are extracted and structured for training.

# Record a demonstration
bash ~/IRIS/meng_ws/record_data.sh -O EPISODE_NAME

# Process bag → episode format
cd ~/IRIS/bag_reader/scripts
python process_rosbag.py \
  --bag /path/to/demo.bag \
  --out /path/to/processed_data

Kinesthetic recording

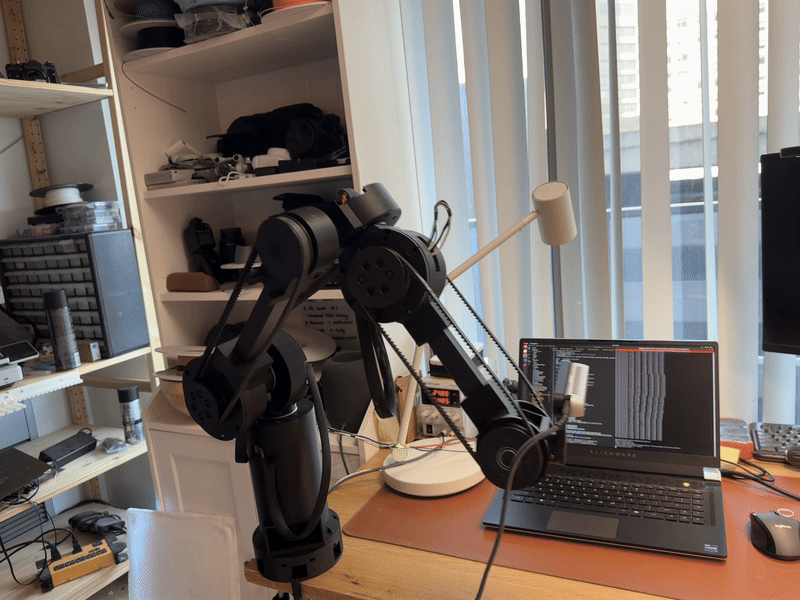

Semi-autonomous mode

Processed episodes: episode_XXXX/rgb/, episode_XXXX/depth/, episode_XXXX/robot/joint_states.csv. See the Learning page for dataset details.
